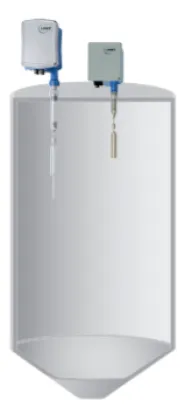

Nivobob
Microprocessor Controlled Level Measuring System
The multifunction unit for discontinuous level monitoring in bulk goods and for interface applications - very precise, even suitable for problematic media, also for use in hazardous locations.
Rope & Tape Version
Our Solutions For
- Strong Caking
- Material with changing temperature and humidity
- Electro static charging
- Heavy material as well as light solids
- Limited space
- Low dielectric constant
- High process temperature
- Large measurement distances
- Explosive environment
Special Features
- High sensitivity (>20 g/l ) dep. on sensor weight
- Rope and Tape version
- Measurement range of up to 50m
- Over pressure version up to 1.7 bar
- Temperature range from -40C to +250C
- Service life up to 500.000 cycles of tape version
- Integrated tape cleaner
- Diagnostic function
- Simple installation and set up
- Comm. via Modbus RTU or Profibus DP
Technical Data
- Model NB 3000
- Housing Alumunium IP 66
- Pressure Max. +1,7 bar (+25 psi)
- Supply Voltage AC version : 98...253V 50-60HZ
- DC version : 20...28V
- Measuring Range Rope version max. 30M
- Tape version max. 50M
- Signal Output 0/4-20mA; Relay counting pulser
- Communication Modbus; Profibus
- Certificate CE; ATEX; FM
- Temperature -40C up to +250C
- Sensitivity From 20g/l depending of sensor weight
- Pro. Connection Flange DN 100 PN16; Flange 2", 3", 4"
- Thread : R 1 1/2", NPT 1 1/2", NPT 3"
