NivoRadar
Radar Sensor for SOLIDS AND LIQUIDS

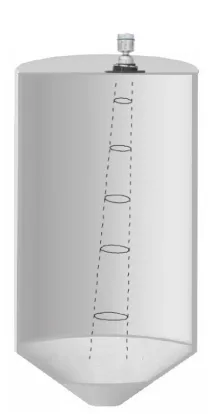

A high frequency signal is transmitted with a very small beam angle with a two-wire technology. It is reflected by the bulk material and received back to the sensor. The frequency difference, which is directly proportional to the distance, is then further processed and output as the level signal. The small beam angle makes the use in tall narrow silos possible and facilitates the installation and alignment of the sensor.
Flat & Aiming Flange
Our Solutions For
- Very light material
- Various application industries
- Dusty environment
- Measurement range of up to 100m
- Use within tall, narrow silos
- Optimum reflection of the bulk solids material
- Corrosion resistance for aggressive material
- High process temperature
- Perfect positioning
- Explosive environments
Special Features
- Signal processing with Process-Intelligence-Software
- 2-wire instrument
- High sensitivity (DK ≥1.6)
- 78GHz technology
- 4° beam angle
- Lens antenna and mounting flange are flush
- Integrated lens cleaner
- Robust stainless steel housing IP68
- Aiming flange model
- Temperature solution up to +200°C
- Plug-on-display
- Quick Start Wizard
- Simple, six-step commissioning
Technical Data
- Housing Stainless steel 1.4404, IP 68 (316L)
- Measuring range/ tolerance 40m or 100m, ±0.25%
- Pressure range 3bar g (40 psi g) max.
- Supply voltage 24 V DC (max. DC 30 V)
- Process connection Flat flange stainless steel 316L, 80-150mm (3" - 6"), aiming flange aluminium diecast, 80-150mm (3" - 6")
- Process temperature range -40°C up to +200°C
- Signal output 4…20mA, 2-conductor
- Communication HART
- Sensitivity From DC value 1.6
- Material lens antenna PEI, PEEK
- Frequency 78-79GHz FMCW
